Description

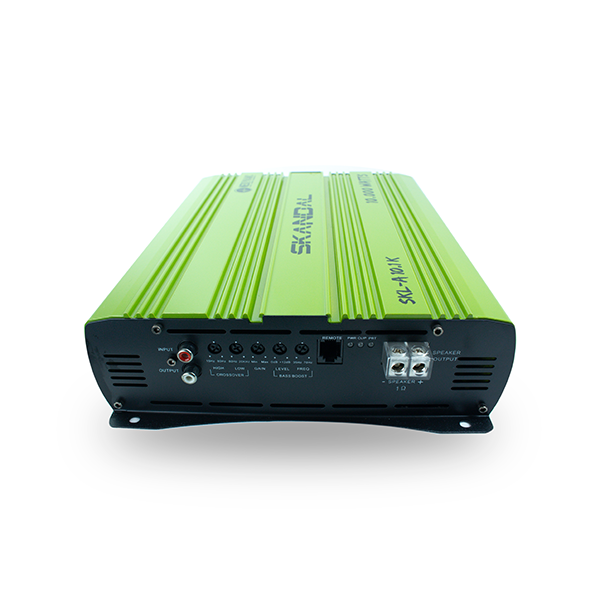

1 channel class D full range amplifier
mini powerful amplifier desing with compact size
1channel 1800w @4ohms, 14.4v THD 1%
1channel 3200w@2ohms, 14.4v THD 1%
size: 297x247x68mm
crossover:12DB
HIGH PASS CROSSOVER: 15-80HZ
LOW PASS CROSSOVER:80-2KHZ
BASS LEVEL ADJUSTMENT: 0-12db
BASS FREQUENCY: 35HZ-70HZ
INPUT TERMINAL :0AWG
OUTPUT TERMINAL:8AWG
INPUT SENSITIVITY: 0.5-8V
THE MINIMUM PERMISSIBLE LOAD IMPEDANCE: 1ohm
WORKING VOLTAGE: 9-15V
